Introduction: grouping and combining objects

Using Draw, you can combine drawing objects together in two distinct ways: grouping and combining. These two methods allow you to treat multiple objects as one unit, or to merge objects to form a new shape.

Grouping is like putting objects in a container. You can move them as a group and apply global changes to them. A group can always be undone and the objects that make up the group can always be manipulated separately.

A combination is a permanent fusion of objects leading to a new object. The original objects are no longer available as individual entities and the operation is not reversible.


To select multiple objects, click on each object while holding down the Shift key or click the Select icon (on the Drawing toolbar) and draw a rectangle around the objects.

Grouping objects

Grouping by common selection

When several objects are selected, any operations you carry out are applied to all of the objects. For example, you can rotate a group of objects in its entirety. Groups obtained through common selection of several objects are undone as soon as you click outside the group. However, you can choose to maintain a grouping so that the selected objects will remain together after they are deselected.

Maintaining groups and undoing groups

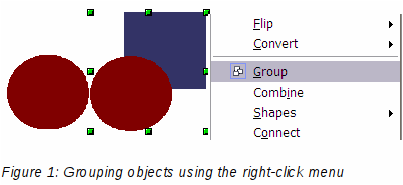

To group objects, first select the objects, then right-click and choose Group from the pop-up menu. You can also use the keyboard shortcut Control+Shift+G or choose Modify > Group from the menu bar.

When objects are grouped, any editing operations carried out on that group are applied to all members of the group. If you click on one member of the group, the whole group is selected.


The objects of a group retain their own individual properties. To undo a group, right-click and choose Ungroup from the pop-up menu, use the keyboard shortcut Control+Alt+Shift+G or choose Modify > Ungroup from the menu bar.

Editing individual objects in a group

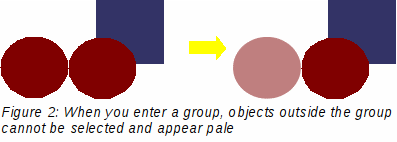

You can edit a member of a group individually without breaking the group. To do this, right-click and choose Enter group or double-click on the group.


Once inside the group, click on any object to edit it.


To leave this mode, right-click and choose Exit group or double-click outside the group.

Nesting groups

You can create “nested” groups, or groups of groups. In this case, Draw keeps the initial group hierarchy. If you ungroup a group made of other groups, you are left with individual groups that you can then ungroup further, and so on until only single objects remain.

Combining objects

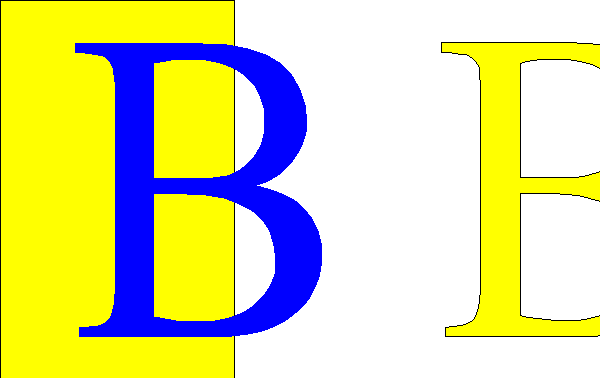

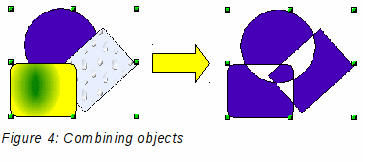

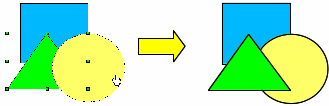

In contrast to grouping functions, combinations create a new object; subsequent entering of the combined objects to individually edit an object is not possible. Select a collection of objects, then right-click and choose Combine from the pop-up menu or use the keyboard shortcut Control+Shift+K. The result of this operation is shown in Figure 4.


At first glance, this can seem rather surprising. Once you understand the rules governing combination in Draw, however, it will become clearer.



You can reorder objects so they are further back in the background or further forward in the foreground: right-click on the object and select Arrangement from the pop-up menu. See also “Aids for positioning objects” on page 8.

An object which is a combination can be broken up again by selecting Modify > Split or using the keyboard shortcut Control+Alt+Shift+K. The combination can also be broken up into its constituent parts by selecting Modify > Break. These are not the equivalent of ungrouping as the objects were converted to Bézier curves when they were combined. An object which is split will, for example, have an ellipse converted to a Bézier curve.

A object which is broken will consist of a set of base level objects (for example, a rectangle will be broken into 4 separate lines) and the original formatting—line thickness, colors, and area properties—is not retained.

Connecting lines

Lines may be connected by selecting them and using Modify > Connect. The connections established seem to be based on joining the ends of pairs of lines with minimum separation. Once a group of lines is connected you can “close” the remaining gap by selecting the line, right-clicking and choosing Close Object. The resultant object is filled with the default fill. If you modified the line properties (color, weight) these are retained in the resulting polygon.

Merging, subtracting, or intersecting shapes

After you have selected more than one object, the Merge, Subtract, and Intersect functions can be reached in the Modify > Shapes menu or though the group’s right-click menu under the heading Shapes.


When you merge objects, the new object covers the entire surface of the original objects (it is the union of the objects). In the same way as combining, the fill of the merged object is determined by the fill of the object furthest in the background. Other properties are not taken over into the new object.


When you subtract, the front object is subtracted from the object behind it.


When you intersect two objects, you get the area covered by both objects.


For more information on moving objects to the front or back, see page 8.

Practical example

The following example shows how you can use the merge functions to create a complex shape, namely a knife with a wooden handle.

  1. Draw an ellipse and then a rectangle overlapping half of its width.

  1. Select both shapes, right-click, and choose Shapes > Subtract from the pop-up menu. The result should resemble the shape at right:

  1. Draw another rectangle and put it over the top half of the ellipse. Then subtract again.

  1. Draw a small ellipse covering just the lower right corner and subtract again.

  1. The knife blade is now complete. To make the handle, draw a rectangle and an ellipse as shown.

  1. Merge the shapes together.

  1. Group this image with the previous one.

Aids for positioning objects

Draw has various tools to help you arrange the objects with respect to each other. Here we explore some of the more important ones.

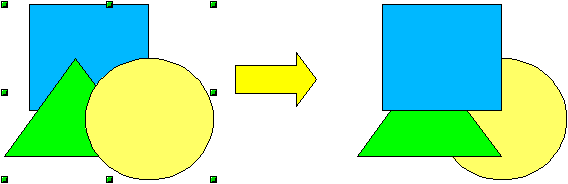

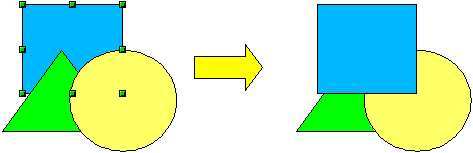

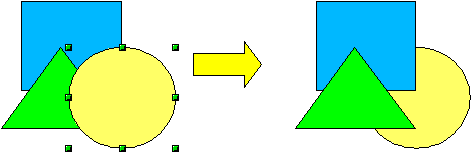

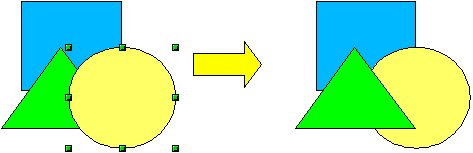

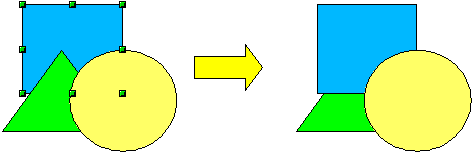

Moving an object to the front or to the back

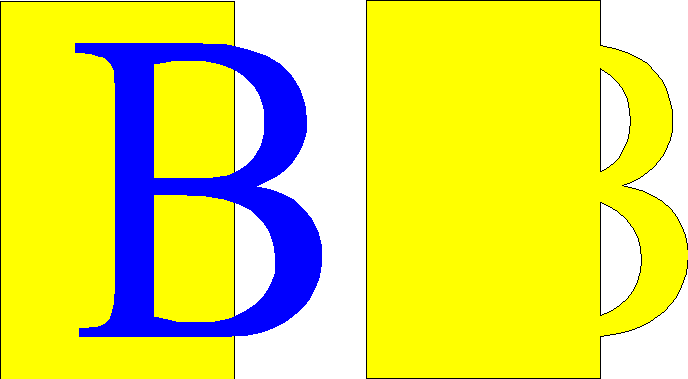

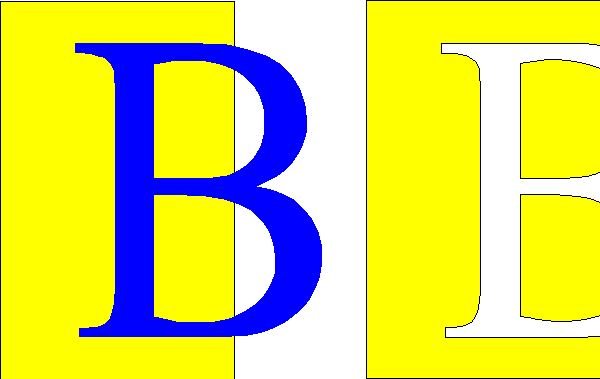

When you combine or merge objects, the end result varies drastically depending on which object is “in front” and which one is “in the back”. In Figure 6 you can see the difference.

Figure 6: Subtracting objects: the result varies depending on which object is in front.

If you imagine several objects stacked one on top of the other, the one referred to as “Front” is the one on top of the stack. The one referred to as “Back” is the one on the very bottom of the stack.

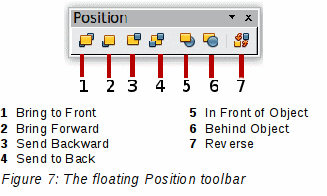

First select an object, then on the Drawing toolbar, long-click on the Arrange icon to open the Position toolbar. This toolbar can be torn off and made to float.


reverses the order of the selected objects (this option is greyed out if only one object is selected).

Aligning objects

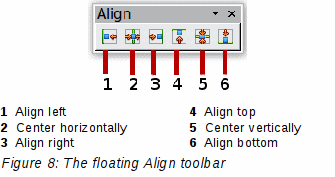

Select two objects and long-click on on the Drawing toolbar to open the Align toolbar. This toolbar can be torn off and made to float. The tools help you position objects with respect to each other.


If you have selected only one object, clicking the various buttons on the Align toolbar positions the object in relation to the drawing page.

Distributing the distance and space between objects

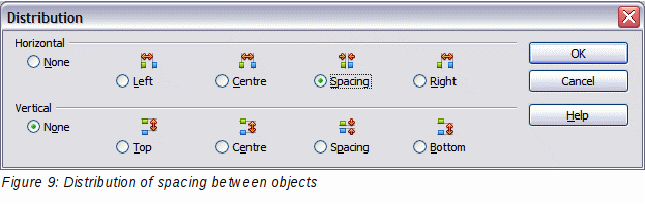

Select at least three objects. Now you are able to select the option Distribution on the Modify menu or from the right-click menu. The Distribution dialog contains a number of options, described below.


Horizontal distribution

None. Does not distribute the objects horizontally.

Left. The left edges of the objects are evenly spaced from one another.

Center. The horizontal centers of the objects are evenly spaced from one another.

Spacing. The horizontal spacing between the objects is evenly distributed.

Right. The right edges of the objects are evenly spaced from one another.

Vertical distribution

None. Does not distribute the objects vertically.

Top. The top edges of the objects are evenly spaced from one another.

Center. The vertical centers of the objects are evenly spaced from one another.

Spacing. The vertical spacing between the objects is evenly distributed.

Bottom. The bottom edges of the objects are evenly spaced from one another.

Figure 10 shows four objects before distribution of horizontal spacing.

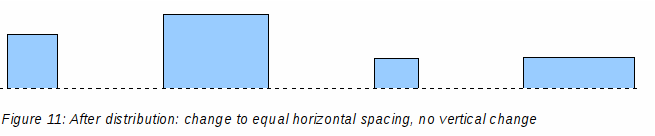

The result of the selections made in Figure 9 (change to equal horizontal spacing, no vertical change) is shown in Figure 11.
