Math is LibreOffice’s component for writing mathematical equations. It is most commonly used as an equation editor for text documents, but it can also be used with other types of documents or standalone. When used inside Writer, the equation is treated as an object inside the text document.
Note
The equation editor is for writing equations in symbolic form, as in equation 1. If you want to evaluate a numeric value, see the Calc Guide.

(1)
To insert an equation, choose Insert → Object → Formula.

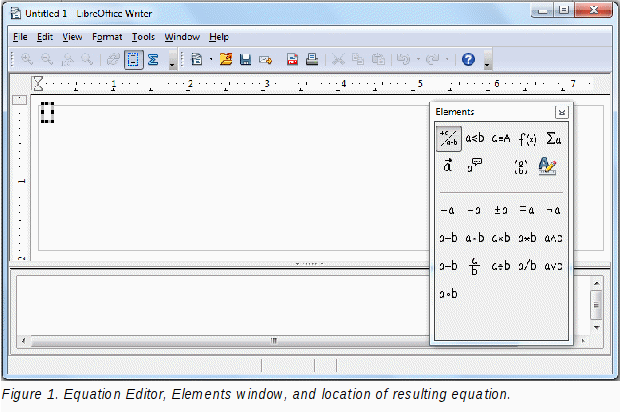

The equation editor opens at the bottom of the screen, and the floating Elements window may appear. You will also see a small box with a gray border in your document, where the formula will be displayed.
The equation editor uses a markup language to represent formulas. For example, %beta creates the Greek character beta (). This markup is designed to read similar to English whenever possible. For example, a over b produces a fraction: .
You can enter a formula in three ways:
Select a symbol from the Elements window.
Rightclick on the equation editor and select the symbol from the context menu.
Type markup in the equation editor.
The context menu and the Elements window insert the markup corresponding to a symbol. This provides a convenient way to learn the Math markup.
Note
Click on the document body to exit the formula editor. Doubleclick on a formula to enter the formula editor again.
The simplest method for entering a formula is to use the Elements window.

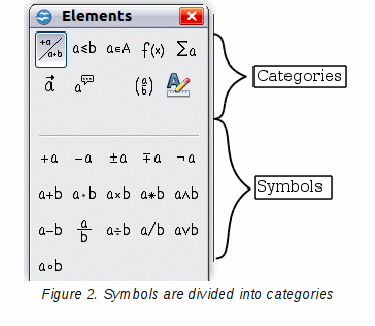

The Elements window is divided into two main parts.
The top shows the symbol categories. Click on these to change the list of symbols.
The bottom shows the symbols available in the current category.
Tip
You can hide or show the Elements window with View → Elements.
Example 1:
For this example we will enter a simple formula:. On the Elements window:

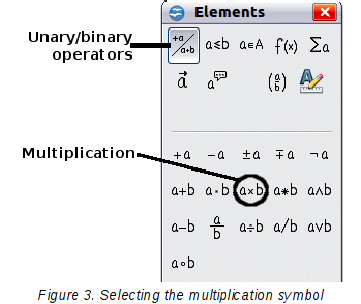

Select the topleft button of the categories (top) section.
Click on the multiplication symbol.
When you select the multiplication symbol on the Elements window, two things happen:
The equation editor shows the markup:
The body of the document shows a gray box like this:

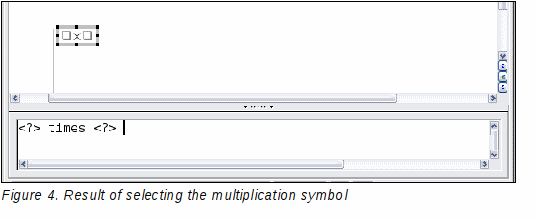

The <?> symbols shown in Figure 4 are placeholders that you can replace by other text, for example 5 and 4. The equation will update automatically, and the result should resemble Figure 5.
Tip
To keep the equation from updating automatically, choose View → AutoUpdate display from the menu bar. To update a formula manually, press F9 or choose View → Update.

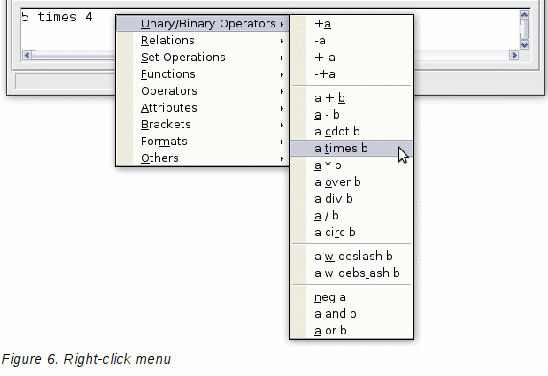

Another way to access mathematical symbols is to rightclick on the equation editor. This pops up the menu shown in Figure 6. The items in this menu correspond exactly to those in the Elements window.
You can type the markup directly in the equation editor. For example, you can type 5 times 4 to obtain . If you know the markup, this can be the fastest way to enter a formula.
Tip
The formula markup resembles the way the formula reads in English.
Below is a short list of common equations and their corresponding markup.
Display
Command
Display
Command

a = b

sqrt {a}

a^2

a_n

int f(x) dx

sum a_n

a <= b

infinity

a times b

x cdot y
Greek characters (, and so on) are common in mathematical formulas. These characters are not available in the Elements window or on the rightclick menu. Fortunately, the markup for Greek characters is simple: Type a % sign followed the name of the character, in English. (In localized versions of LibreOffice, these names are localized.)
To write a lowercase character, type the name of the character in lowercase.
To write an uppercase character, type the name of the character in uppercase.
See the table below for some examples.
Lowercase
Uppercase
%alpha
%ALPHA
%beta
%BETA
%gamma
%GAMMA
%psi
%PSI
%phi
%PHI
%theta
%THETA
Note
A complete table of Greek characters is provided in the Math Guide.

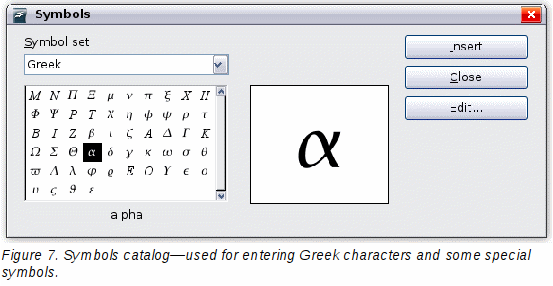

Another way to enter Greek characters is by using the Symbols catalog window. Choose Tools → Catalog. Under Symbol set, select Greek and doubleclick on a Greek letter from the list. The markup name of the character is shown below the list window.
Example 2:
For this example we will suppose that:
We want to enter the above formula (the value of pi rounded to 5 decimal places).
We know the name of the Greek character (pi).
But we do not know the markup associated with the symbol.
Step 1: Type % followed by the text pi. This displays the Greek character .
Step 2: Open the Elements window (View → Elements).
Step 3: The symbol is a relation, so we click on the Relations button. If you hover the mouse over this button you see the tooltip Relations (Figure 8).

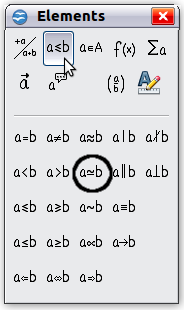

Figure 9 shows the Elements window after clicking the Relations button. The symbol we want is circled.
Figure 8. Tooltip indicates the Relations button
Figure 9. After selecting Relations
Step 4: Click on the ab symbol. The equation editor now shows the markup %pi<?> simeq <?>.

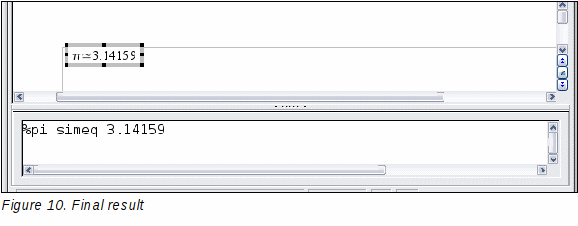

Step 5: Delete the <?> text and add 3.14159 at the end of the equation. We end up with the markup %pi simeq 3.14159. The result is shown in Figure 10.
Formula editor as a floating window
The formula editor can cover a large part of the Writer window. To turn the formula editor into a floating window, do this:

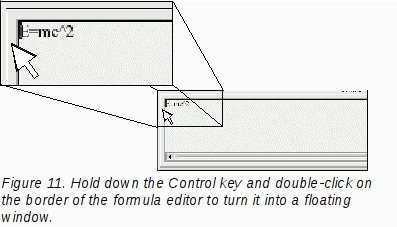

Hover the mouse over the editor frame, as shown in Figure 11.
Hold down the Control key and doubleclick.

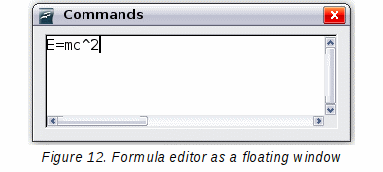

Figure 12 shows the result. You can dock the floating window again by using the same steps. Hold down the Control key and doubleclick the window frame.
How can I make a formula bigger?
This is one of the most common questions people ask about Math. The answer is simple:

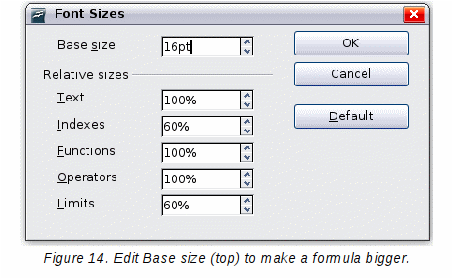

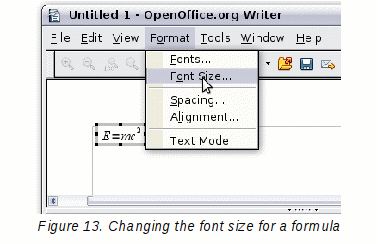

Start the formula editor and choose Format → Font size.
Select a larger font size under Base size (topmost entry).

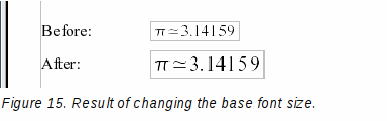

The result of this change is illustrated in Figure 15.
The most difficult part of using Math comes when writing complicated formulas. This section provides some advice.
Math knows nothing about order of operation. You must use brackets to state the order of operations explicitly. Consider the following example.
Markup
Result
2 over x + 1

2 over {x + 1}

Equations over more than one line
Suppose you want to type an equation covering more than one line. For example:
Your first reaction would be to simply press the Enter key. However, if you press the Enter key, though the markup goes to a new line, the resulting equation does not. You must type the newline command explicitly. This is illustrated in the table below.
Markup
Result
x = 3 y = 1

x = 3 newline y = 1

How do I add limits to my sum/integral?
The sum and int commands can (optionally) take the parameters from and to. These are used for lower and upper limits respectively. These parameters can be used singly or together. Limits for integrals are usually treated as subscripts and superscripts.
Markup
Result
sum from k = 1 to n a_k

int from 0 to x f(t) dt or int_0^x f(t) dt
or
int from Re f

sum to infinity 2^{n}

Note
For more details on integrals and sums, see the Math Guide.
For background, we start with an overview of the matrix command.
Markup
Result
matrix { a # b ## c # d }

Note
Rows are separated by two #’s and entries within each row are separated by one #.
The first problem people have with matrices is that brackets do not scale with the matrix.
Markup
Result
( matrix { a # b ## c # d } )

Math provides scalable brackets. That is, the brackets grow in size to match the size of their contents. Use the commands left( and right) to make scalable brackets.
Markup
Result
left( matrix { a # b ## c # d } right)

Tip
Use left[ and right] to obtain square brackets.
Making derivatives essentially comes down to one trick: Tell Math it’s a fraction.
In other words, you have to use the over command. Combine this with either the letter d (for a total derivative) or the partial command (for a partial derivative) to achieve the effect of a derivative.
Note
Notice that we have to use braces (squiggly brackets) to make the derivative.
Markup
Result
{df} over {dx}

{partial f} over {partial y}

{partial^2 f} over {partial t^2}

How do I align my equations at the equals sign?
Math does not have a command for aligning equations on a particular character, but you can use a matrix to do this, as shown below.
Markup
Result
matrix{ alignr x+y # {}={} # alignl 2 ## alignr x # {}={} # alignl 2y }

The empty braces around = are necessary because = is a binary operator and thus needs an expression on each side.
You can reduce the spacing around = if you change the intercolumn spacing of the matrix:
With the equation editor open, choose Format → Spacing from the menu bar.

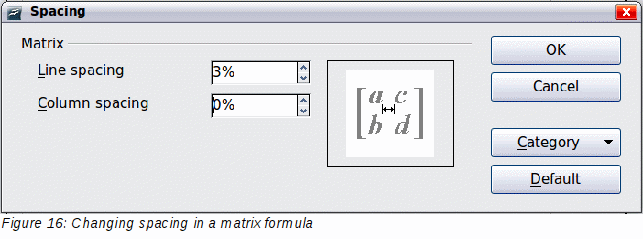

In the Spacing dialog (Figure 16), click the Category button and select Matrices in the dropdown menu.
Enter 0% for Column spacing and click OK.
Equation numbering is one of Math’s best hidden features. The steps are simple:
Start a new line.
Type fn and then press F3.
The fn is replaced by a numbered formula:

(2)
Now you can doubleclick on the formula to edit it. For example, here is the Riemann Zeta function:

(3)
You can reference an equation (“as shown in Equation (2)”) with these steps:
Choose Insert → Crossreference from the menu bar.

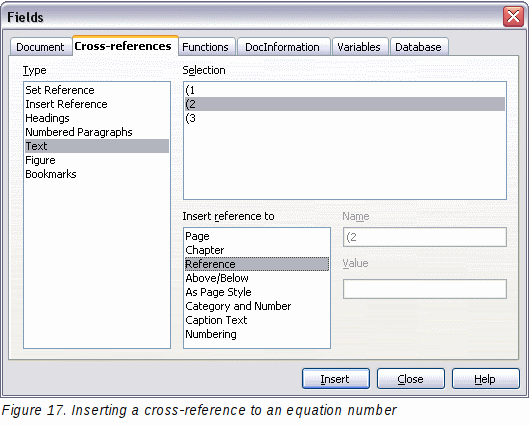

On the Crossreferences tab (Figure 17), under Type, select Text.
Under Selection, select the equation number.
Under Format, select Reference.
Click Insert.
Done! If you later add more equations to the paper before the referenced equation, all the equations will automatically renumber and the crossreferences will update.
Tip
To insert the equation number without parenthesis around it, choose Numbering instead of Reference under Format.
