Introduction

This chapter describes some common customizations that you may wish to do.

You can customize menus, toolbars, and keyboard shortcuts in LibreOffice, add new menus and toolbars, and assign macros to events. However, you cannot customize context (right-click) menus.

Other customizations are made easy by extensions that you can install from the LibreOffice website or from other providers.

Note

Customizations to menus and toolbars can be saved in a template. To do so, first save them in a document and then save the document as a template as described in Chapter 10, Working with Templates.

Customizing menu content

In addition to changing the menu font (described in Chapter 2), you can add and rearrange items on the menu bar, add items to menus, and make other changes.

To customize menus:

  1. Choose Tools Customize.

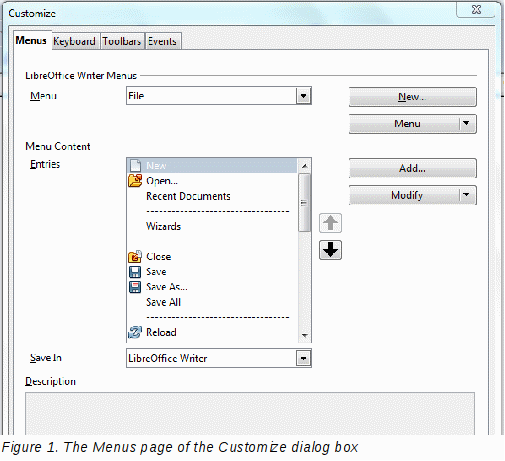

  2. On the Customize dialog box, go to the Menus page.

Frame8

  1. In the Save In drop-down list, choose whether to save this changed menu for the application (Writer) or for a selected document.

  2. In the section LibreOffice Writer Menus, select from the Menu drop-down list the menu that you want to customize. The list includes all the main menus as well as sub-menus, that is menus that are contained under another menu. For example, in addition to File, Edit, View, and so on, there is File | Send and File |Templates. The commands available for the selected menu are shown in the central part of the dialog box.

  3. To customize the selected menu, click on the Menu or Modify buttons. You can also add commands to a menu by clicking on the Add button. These actions are described in the following sections. Use the up and down arrows next to the Entries list to move the selected menu item to a different position.

  4. When you have finished making all your changes, click OK to save them.

Creating a new menu

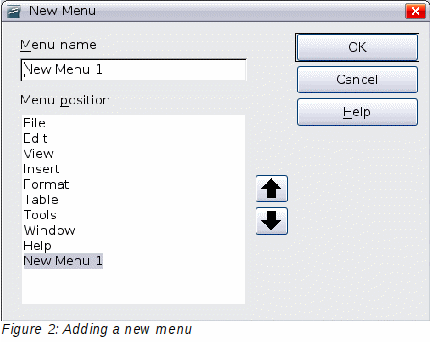

In the Customize dialog box, click New to display the New Menu dialog box, shown in Figure 2.

  1. Type a name for your new menu in the Menu name box.

  2. Use the up and down arrow buttons to move the new menu into the required position on the menu bar.

  3. Click OK to save.

The new menu now appears on the list of menus in the Customize dialog box. (It will appear on the menu bar itself after you save your customizations.)

After creating a new menu, you need to add some commands to it, as described in “Adding a command to a menu” on page 6.

Frame26

Modifying existing menus

To modify an existing menu, select it in the Menu list and click the Menu button to drop down a list of modifications: Move, Rename, Delete. Not all of these modifications can be applied to all the entries in the Menu list. For example, Rename and Delete are not available for the supplied menus.

To move a menu (such as File), choose Menu Move. A dialog box similar to the one shown in Figure 2 (but without the Menu name box) opens. Use the up and down arrow buttons to move the menu into the required position.

To move submenus (such as File | Send), select the main menu (File) in the Menu list and then, in the Menu Content section of the dialog box, select the submenu (Send) in the Entries list and use the arrow keys to move it up or down in the sequence. Submenus are easily identified in the Entries list by a small black triangle on the right hand side of the name.

In addition to renaming, you can specify a keyboard shortcut that allows you to select a menu command when you press Alt+ an underlined letter in a menu command.

  1. Select a menu or menu entry.

  2. Click the Menu button and select Rename.

  3. Add a tilde (~) in front of the letter that you want to use as an accelerator. For example, to select the Save All command by pressing Alt+V (after opening the File menu using Alt+F), enter Sa~ve All.

Caution

Be careful when using these shortcuts. In the example above, if the File menu is not already open, then pressing Alt+V opens the View menu; if another other menu is open, Alt+V may activate another command.

Adding a command to a menu

You can add commands to the supplied menus and to menus you have created. On the Customize dialog box, select the menu in the Menu list and click the Add button in the Menu Content section of the dialog box. The Add Commands dialog box is displayed.

Frame9

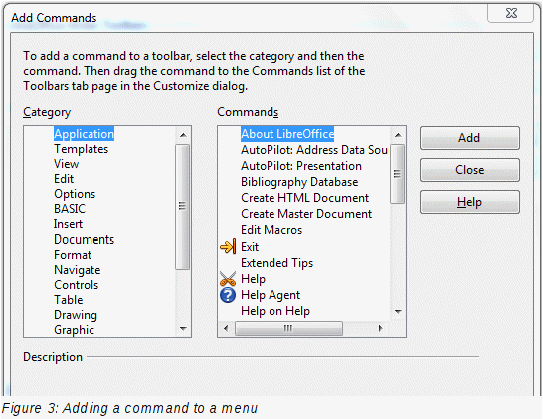

On the Add Commands dialog box, select a category and then the command, and click Add. The dialog box remains open, so you can select several commands. When you have finished adding commands, click Close. Back on the Customize dialog box, you can use the up and down arrow buttons to arrange the commands in your preferred sequence.

Modifying menu entries

In addition to changing the sequence of entries on a menu or submenu, you can add submenus, rename or delete the entries, and add group separators.

To begin, select the menu or submenu in the Menu list near the top of the Customize page, then select the entry in the Entries list under Menu Content. Click the Modify button and choose the required action from the drop-down list of actions.

Most of the actions should be self-explanatory. Begin a group adds a separator line after the highlighted entry.

Customizing toolbars

You can customize toolbars in several ways, including choosing which icons are visible and locking the position of a docked toolbar, as described in Chapter 1, Introducing Writer, and adding or deleting icons (commands) in the list of those available on a toolbar. You can also create new toolbars. This section describes how to create new toolbars and add or delete icons on existing ones.

To get to the toolbar customization dialog box, do any of the following:

Modifying existing toolbars

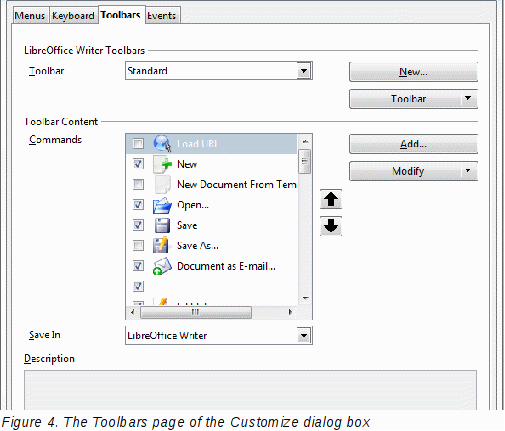

To modify an existing toolbar:

  1. In the Save In drop-down list, choose whether to save this changed toolbar for the application (Writer) or for a selected document.

  2. In the section LibreOffice Writer Toolbars, select from the Toolbar drop-down list the toolbar that you want to modify.

  3. Click on the Toolbar or Modify buttons, and add commands to a toolbar by clicking on the Add button. You can also create a new toolbar by clicking on the New button. These actions are described in the following sections.

  4. When you have finished making all your changes, click OK to save them.

Adding a command to a toolbar

If the list of available buttons for a toolbar does not include all the commands you want on that toolbar, you can add commands. When you create a new toolbar, you need to add commands to it.

  1. On the Toolbars page of the Customize dialog box, select the toolbar in the Toolbar list and click the Add button in the Toolbar Content section of the dialog box.

  2. The Add Commands dialog box (Figure 3) is the same as for adding commands to menus. Select a category and then the command, and click Add. The dialog box remains open, so you can select several commands. When you have finished adding commands, click Close. If you insert an item which does not have an associated icon, the toolbar will display the full name of the item: the next section describes how to choose an icon for a toolbar command.

  3. Back on the Customize dialog box, you can use the up and down arrow buttons to arrange the commands in your preferred sequence.

  4. When you are done making changes, click OK to save.

Frame3

Choosing icons for toolbar commands

Toolbar buttons usually have icons, not words, on them, but not all of the commands have associated icons.

To choose an icon for a command, select the command in the Toolbar Content – Commands list in the Customize dialog box, and click Modify Change icon. On the Change Icon dialog box, you can scroll through the available icons, select one, and click OK to assign it to the command.

To use a custom icon, create it in a graphics program and import it into LibreOffice by clicking the Import button on the Change Icon dialog box. Custom icons must be 16 x 16 in size and cannot contain more than 256 colors.

Frame2

Example: Adding a Fax icon to a toolbar

You can customize LibreOffice so that a single click on an icon automatically sends the current document as a fax.

  1. Be sure the fax driver is installed. Consult the documentation for your fax modem for more information.

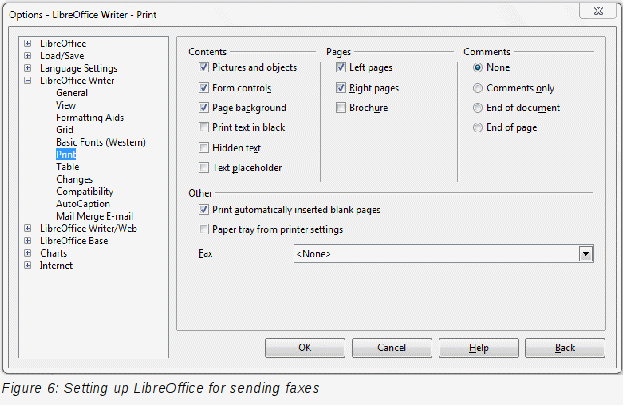

  2. Choose Tools Options LibreOffice Writer Print. The dialog box shown in Figure 6 opens.

Frame10

  1. Select the fax driver from the Fax list and click OK.

  2. Click the arrow icon at the end of the Standard toolbar. In the drop-down menu, choose Customize Toolbar. The Toolbars page of the Customize dialog box appears (Figure 4). Click Add.

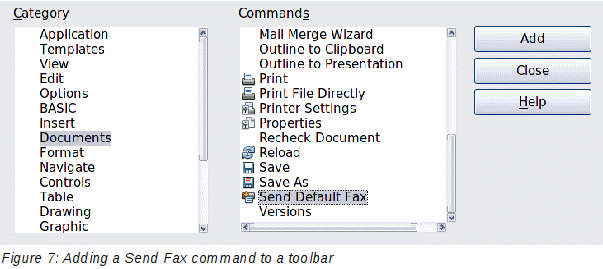

  3. On the Add Commands dialog box (Figure 7), select Documents in the Category list, then select Send Default Fax in the Commands list. Click Add. Now you can see the new icon in the Commands list of the Toolbars page.

  4. In the Commands list, click the up or down arrow button to position the new icon where you want it. Click OK and then click Close. Your toolbar now has a new icon to send the current document as a fax.

Frame23

Creating a new toolbar

To create a new toolbar:

  1. Choose Tools Customize Toolbars from the menu bar.

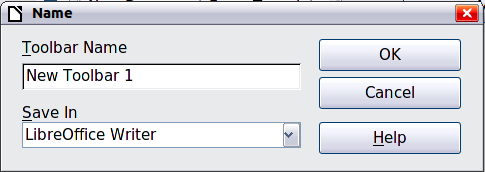

  2. Click New. On the Name dialog box, type the new toolbar’s name and choose from the Save In drop-down list where to save this changed menu: for the application (Writer) or for a selected document.

The new toolbar now appears on the list of toolbars in the Customize dialog box. After creating a new toolbar, you need to add some commands to it, as described above.

Assigning shortcut keys

In addition to using the built-in keyboard shortcuts (listed in Appendix A), you can define your own. You can assign shortcuts to standard LibreOffice functions or your own macros and save them for use with the entire LibreOffice suite.

Caution

Be careful when reassigning your operating system’s or LibreOffice’s predefined shortcut keys. Many key assignments are universally understood shortcuts, such as F1 for Help, and are always expected to provide certain results. Although you can easily reset the shortcut key assignments to the LibreOffice defaults, changing some common shortcut keys can cause confusion, especially if other users share your computer.

To adapt shortcut keys to your needs, use the Customize dialog box, as described below.

  1. Choose Tools  Customize  Keyboard. The Customize dialog box opens.

  2. To have the shortcut key assignment available in all components of LibreOffice, select the LibreOffice button.

  3. Next select the required function from the Category and Function lists.

  4. Now select the desired shortcut keys in the Shortcut keys list at the top of the page and click the Modify button on the right. The selection now appears in the Keys list on the lower right.

  5. Click OK to accept the change. Now the chosen shortcut keys will execute the function chosen in step 3 above whenever they are pressed.

Note

All existing shortcut keys for the currently selected Function are listed in the Keys selection box. If the Keys list is empty, it indicates that the chosen key combination is free for use. If it were not, and you wanted to reassign a shortcut key combination that is already in use, you must first delete the existing key.

Shortcut keys that are greyed-out in the listing on the Customize dialog box, such as F1 and F10, are not available for reassignment.

Example: Assigning styles to shortcut keys

You can configure shortcut keys to quickly assign styles in your document. Some shortcuts are predefined, such as Ctrl+0 for the Text body paragraph style , Ctrl+1 for the Heading 1 style and Ctrl+2 for Heading 2. You can modify these shortcuts and create your own.

  1. Click Tools Customize Keyboard. The Keyboard page of the Customize dialog box (Figure 8) opens.

  2. To have the shortcut key assignment available only for Writer, select Writer in the upper right corner of the page; otherwise select LibreOffice to make it available to every component.

  3. Choose the shortcut keys you want to assign a style to. In this example, we have chosen Ctrl+9.

  4. In the Functions section at the bottom of the dialog box, scroll down in the Category list to Styles. Click the + sign to expand the list of styles.

  5. Choose the category of style. (This example uses a paragraph style, but you can also choose character styles and others.) The Function list will display the names of the available styles for the selected category. The example shows some of LibreOffice’s predefined styles.

Frame7

  1. To assign Ctrl+9 to be the shortcut key combination for the List 1 style, select List 1 in the Function list, and then click Modify. Ctrl+9 now appears in the Keys list on the right, and List 1 appears next to Ctrl+9 in the Shortcut keys box at the top.

  2. Make any other required changes, and then click OK to save these settings and close the dialog box.

Example: Assigning macros to shortcut keys

A common use for assigning macros to shortcut keys is to enable quick and easy insertion of special characters. This example shows how to set up keyboard shortcuts for inserting en-dashes and em-dashes.

Note

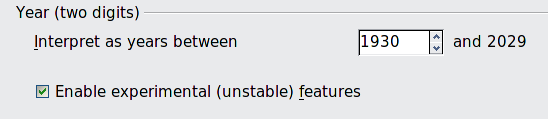

To enable macro recording, go to Tools Options LibreOffice General and select the Enable experimental (unstable) features option.


First, you need to record a macro for inserting each type of dash. Then, you need to assign those macros to shortcut key combinations.

  1. Choose Tools Macros Record Macro to start recording a macro.

  2. A small window is displayed so you know that LibreOffice is recording.

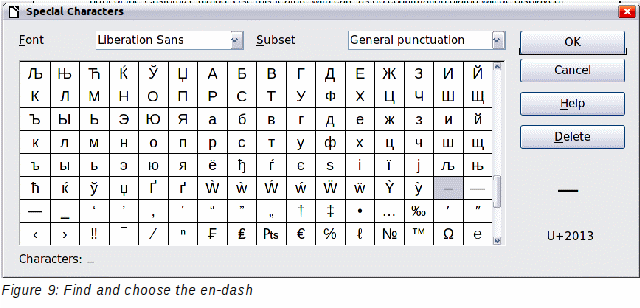

  3. Choose Insert Special Characters to open the Special Characters dialog box. Scroll down until you find the en-dash (U+2013) and em-dash (U+2014) characters. Select one of them and click OK.

Frame4

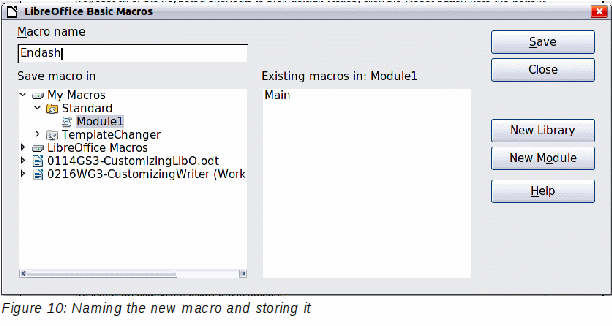

  1. Click the Stop Recording button to stop recording, save the macro, and display the LibreOffice Basic Macros dialog box (see Figure 10). Type a descriptive name for the new macro in the Macro name box on the upper left.

Frame5

  1. Be sure to open the library container named My Macros. Find the library named Standard under My Macros. Select Module1 and click Save.

  2. Repeat steps 1–4 to create other macros, for example to insert an em-dash.

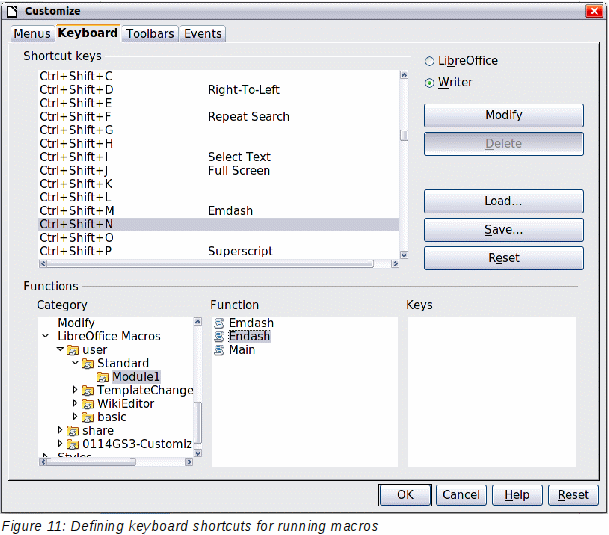

  3. Choose Tools Customize Keyboard tab (Figure 11). In the Shortcut keys list, pick an unused combination (for example, Ctrl+Shift+M for an emdash). In the Category list, scroll down to LibreOffice Macros, click the + sign (or small triangle, depending on your operating system), then click the + (or triangle) next to the Standard library and choose Module1. In the Function list, choose Emdash and click the Modify button on the upper right. The selected key combination now appears in the Keys list on the lower right, and Emdash appears next to Ctrl+Shift+N in the Shortcut keys list.

  4. Repeat for the endash macro, then click OK.

Tip

For inserting en- and em-dashes, and other special characters, you may find extensions such as Compose Special Characters useful. See “Adding functionality with extensions” on page 15.

Frame6

Saving changes to a file

Changes to the shortcut key assignments can be saved in a keyboard configuration file for use at a later time, thus permitting you to create and apply different configurations as the need arises. To save keyboard shortcuts to a file:

  1. After making your keyboard shortcut assignments, click the Save button near the bottom right of the Customize dialog box (Figure 8).

  2. In the Save Keyboard Configuration dialog box, select All files from the Save as Type list.

  3. Next enter a name for the keyboard configuration file in the File name box, or select an existing file from the list. If you need to, browse to find a file from another location.

  4. Click Save. A confirmation dialog box appears if you are about to overwrite an existing file, otherwise there will be no feedback and the file will be saved.

Loading a saved keyboard configuration

To load a saved keyboard configuration file and replace your existing configuration, click the Load button near the bottom right of the Customize dialog box, and then select the configuration file from the Load Keyboard Configuration dialog box.

Resetting the shortcut keys

To reset all of the keyboard shortcuts to their default values, click the Reset button near the bottom right of the Customize dialog box. Use this feature with care as no confirmation dialog box will be displayed; the defaults will be set without any further notice or user input.

Assigning macros to events

In LibreOffice, when something happens, we say that an event occurred. For example, a document was opened, a key was pressed, or the mouse moved. You can associate a macro with an event, so the macro is run when the event occurs. For example, a common use is to assign the “open document” event to run a macro that performs certain setup tasks for the document.

To associate a macro with an event, use the Events page of the Customize dialog box. For more information, see Chapter 13, Getting Started with Macros, in the Getting Started guide.

Adding functionality with extensions

An extension is a package that can be installed into LibreOffice to add new functionality.

Although individual extensions can be found in different places, the official LibreOffice extension repository is at http://extensions.libreoffice.org/. Some extensions are free of charge; others are available for a fee. Check the descriptions to see what licenses and fees apply to the ones that interest you.

Installing extensions

To install an extension, follow these steps:

  1. Download an extension and save it anywhere on your computer.

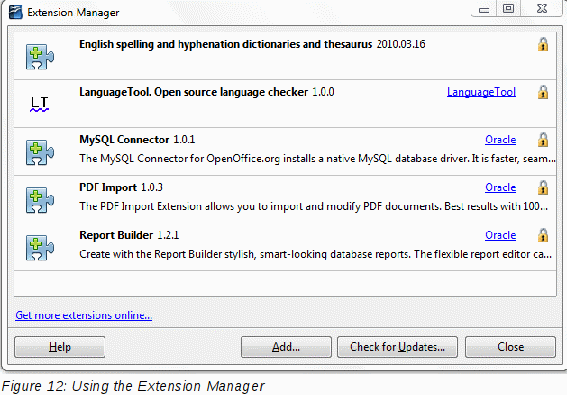

  2. In LibreOffice, select Tools Extension Manager from the menu bar. In the Extension Manager dialog box (Figure 12), click Add.

  3. A file browser window opens. Find and select the extension you want to install and click Open. The extension begins installing. You may be asked to accept a license agreement.

  4. When the installation is complete, the extension is listed in the Extension Manager dialog box.

Tip

To get extensions that are listed in the repository, you can open the Extension Manager and click the Get more extensions here link. You do not need to download them separately as in step 1 above.

Note

To install a shared extension, you need to have write access to the LibreOffice installation directory.

Frame11

Using extensions

This section describes a few of the more important and popular extensions to Writer. All are available from the LibreOffice extensions repository. In each case, you need to first install the extension as described in the previous section.

Template Changer

Adds two new items to the File Templates menu that allow you to assign a new template to the current document or to a folder of documents. All styles and formatting will be loaded from that template and the document will behave as it was created using that template. Open source.

Compose Special Characters

Provides a facility for inserting accented and special characters using key combinations. Adds an entry (Compose Character) to the Insert menu, which opens a dialog box where you can view the list of key combinations and choose the keystroke you want to use to run the macro. Once setup is done, simply press the appropriate key combination, followed by the keystroke to run the macro. Open source.

PDF Import

This extension enables you to make minor modifications to the text of existing PDF files when the original source files do not exist or you are unable to open the source files. (Whenever possible, modify the source and regenerate the PDF to obtain the best results.)

When the extension is installed, PDF is listed as a choice in the File Type drop-down list in the File Open dialog box.

Best results can be achieved with the PDF/ODF hybrid file format, which this extension also enables. A hybrid PDF/ODF file is a PDF file that contains an embedded ODF source file. Hybrid PDF/ODF files will be opened in LibreOffice as an ODF file without any layout changes.

Non-hybrid PDF documents open in Draw. Many PDFs can be edited and resaved with no problems. However, depending on the complexity of the layout, the fonts used, the graphics included, and other factors, changes may be difficult to make, font substitution may occur, and the saved result may not preserve the original layout.

From Oracle. Open source.

Writer’s Tools

A set of utilities designed to help LibreOffice users perform a wide range of tasks. Using Writer’s Tools, you can back up documents, look up and translate words and phrases, manage text snippets, and keep tabs on document statistics. Open source.
